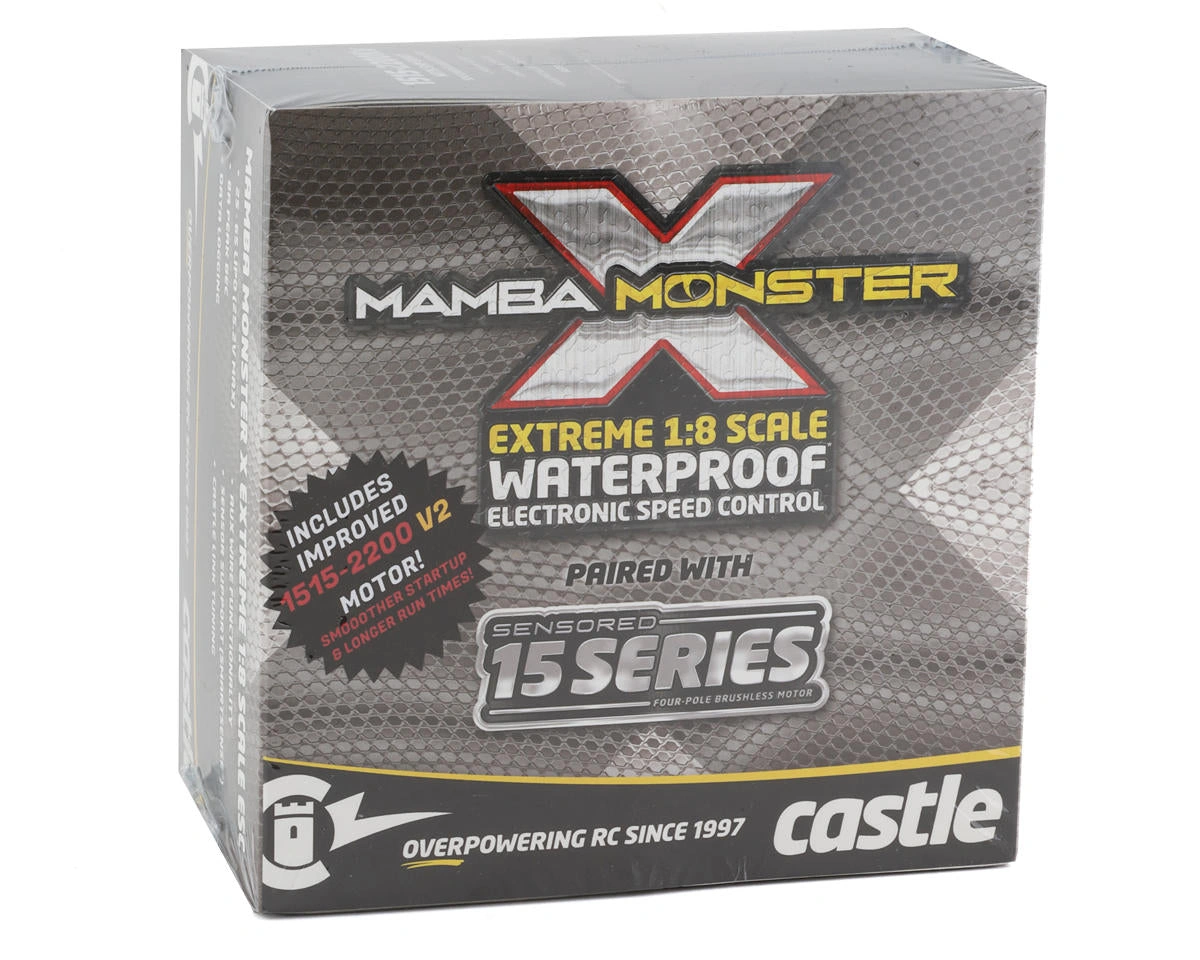

Monster X 1/8 Brushless Combo with 1515 V2 Sensored Motor Mamba Monster X ESC and 1515-2200Kv V2 are paired together and perform incredibly in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot) and works great in 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs. You will have all the power your 1:8th scale vehicle demands with the smoother throttle control of a sensored motor. Mamba Monster X takes Castle’s legendary “monster” performance to a whole new level!

MAMBA MONSTER X FEATURES:

• Selectable 5.5V or 7.5V (6A peak) internal BEC (Battery Eliminator Circuit)
• Housed in a durable injection molded case and potted in Waterproof epoxy to protect the electronics and promote efficient heat transfer
• Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
• Data Logging to capture and record performance data from your vehicle
• Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
• Convenient Transmitter programming for six common adjustable settings including cutoff voltage and drag brake
• SMARTSENSE™ uses the motor’s sensors at startup to provide cog-free starts, excellent torque and low-speed drivability
• Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as max Power and max Brake
• Proudly designed, assembled and supported in Kansas USA and backed by Castle Creations' 1-Year Warranty

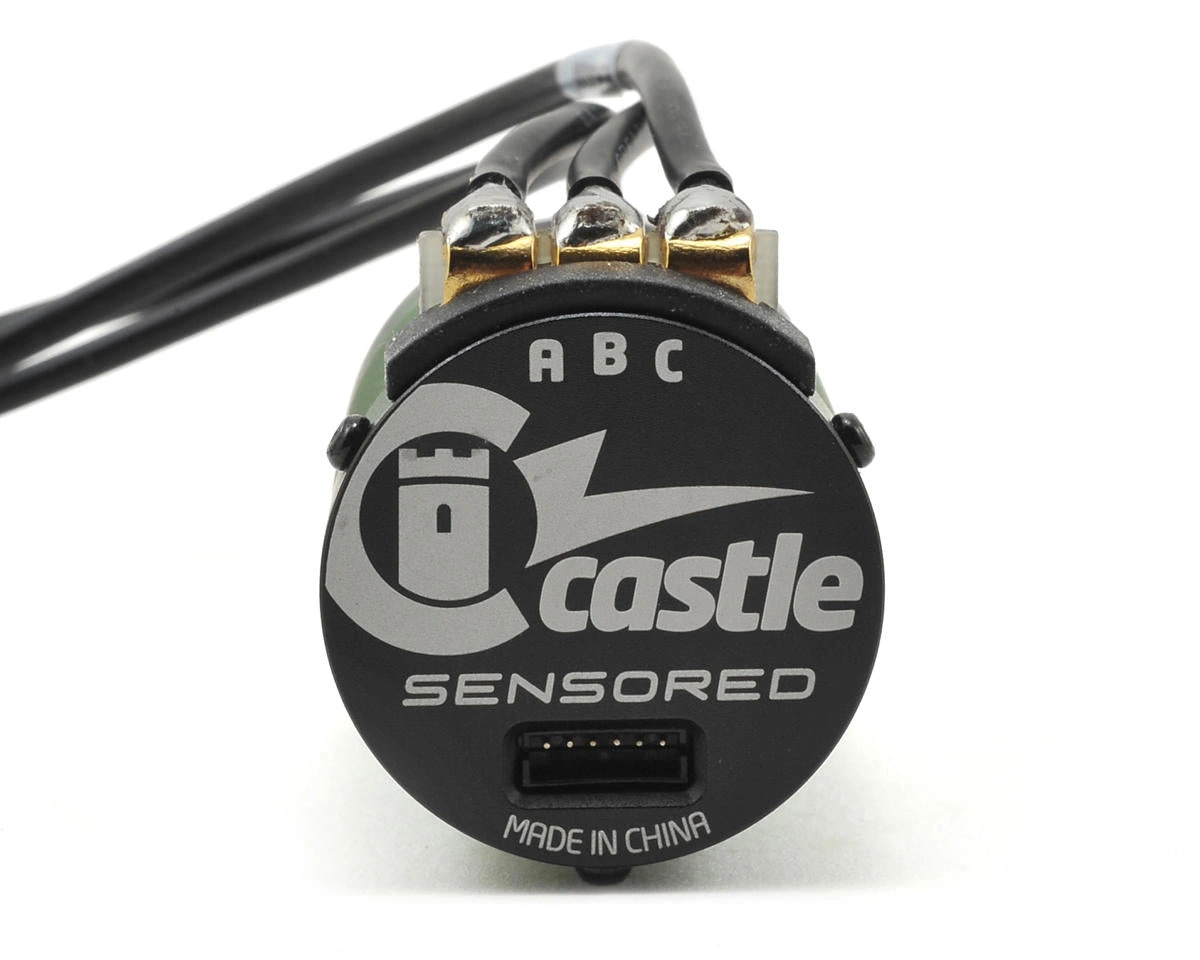

1515-2200 V2 MOTOR FEATURES:

• Redesigned stator and rotor assemblies to improve magnetic flux.
• Reduced magnetic cogging, producing less residual drag brake.
• Increased efficiency, resulting in lower temperatures and longer run times.
• Smoother start-up, reducing cogging or stuttering when starting from a stop.
• Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
• High-Strength Kevlar wrap and 180C grade neodymium sintered magnets
• Oversized NMB bearings and high-temperature, high-purity copper windings
• High performance 0.2mm steel lamination stacked stator
• Oversized, low-resistance, gold-plated solder tabs
• Sensor board with high quality temperature stabilized sensors
• T6 aluminum CNC-Machined front/rear end bell
• Proudly designed and supported in Kansas, USA.

Specifications:

• ESC:
• Input voltage range: 2S-6S LiPo
• Length: 2.09' (53mm)
• Width: 1.93' (49mm)
• Height: 1.44' (36.4mm)
• Weight: 3.92 oz. (111.g)
• On/Off Switch: Yes
• Cooling Fan: Yes, factory equipped (30mm), fully removable**
• Connector: 6.5mm female bullets for motor connection.
• Wire Gauge: 8AWG
• Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX, T7PXR Transmitters
• Motor:
• Application: Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs.
• Input Voltage Range: 2-6S LiPo
• Kv Rating: 2200Kv
• Max. RPM: 60.000
• Diameter: 40mm (41.4mm with fins)
• Length: 3.99' (101.2mm)
• Shaft Size: 20mm(Length), 5mm(Diameter)
• Weight(w/wires): Approx. 429g / 15.1oz; 380g without wires.
• Mounting Hole Specifications: (Holes) 4mm & 3mm / (Spacing) 25mm
• Connectors: 6.5mm male Castle Bullet Connectors, include 210mm length sensor wire.

Includes:

• (1) Mamba Monster X ESC
• (1) 1515-2200Kv V2 Brushless Sensored Motor
• (1) Castle Sensor Harness Adapter

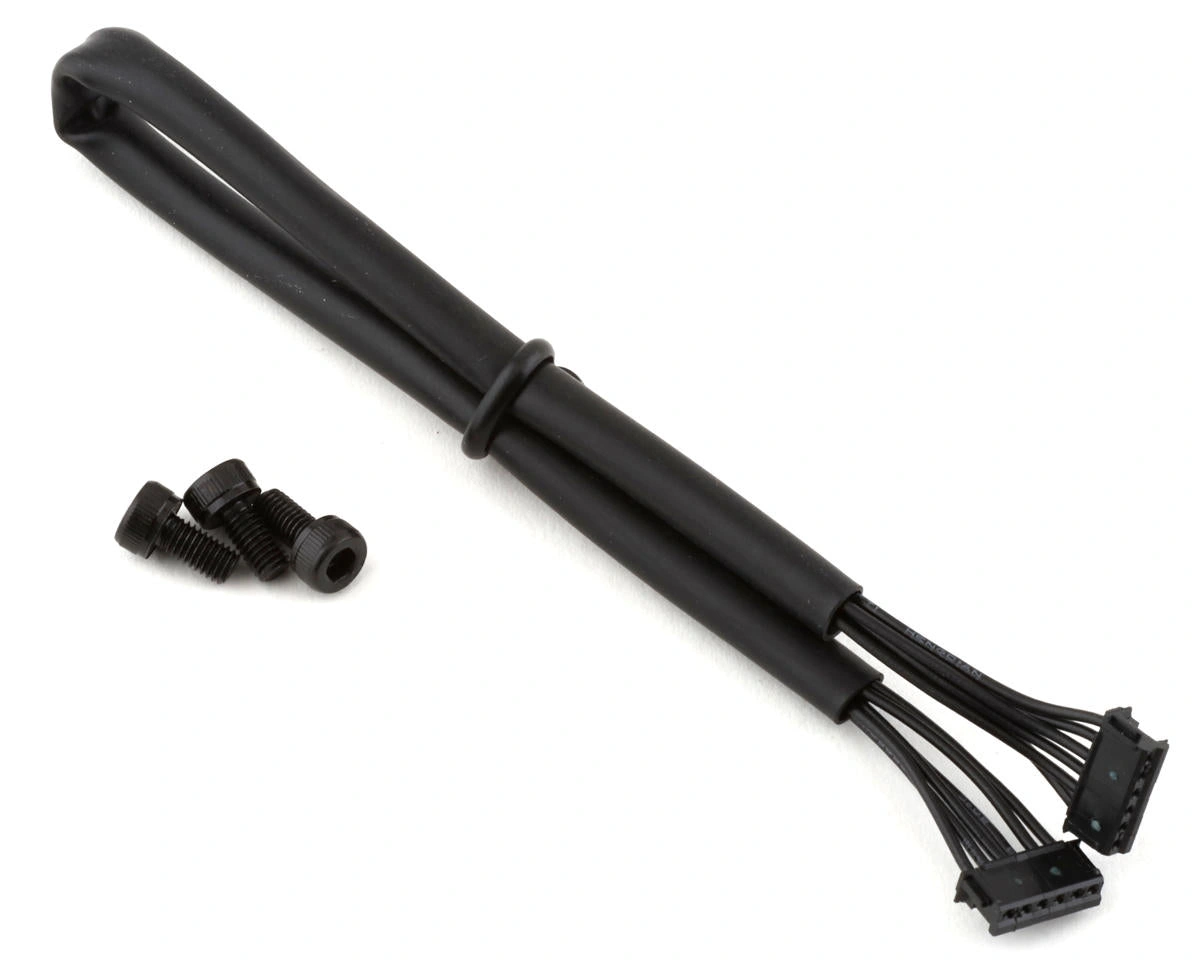

• (1) 210 mm sensor wire (for sensored operation)
• (1) Coupon for free Castle Link USB
• (1) Mamba Monster X Quick Start Guide and Decals
