INFRACTION 6S BLX: Unleash the Beast on the Streets! 1/7 Scale RTR Action!
Alright folks buckle up buttercups because we're about to drop some serious awesome on ya This ain't your grandma's whatever-it-is This is a portal a gateway a freakin' superpower in a can Think next level think outta this world think finally getting that thing you always wanted Well guess what you're one click away from pure unadulterated joy Don't just buy it live it Love it Own it You deserve this treat Yourself Trust us your future self will be sending you thank you notes in the mail And who doesn't love mail am I right So what are you waiting for Let's go
Introduction

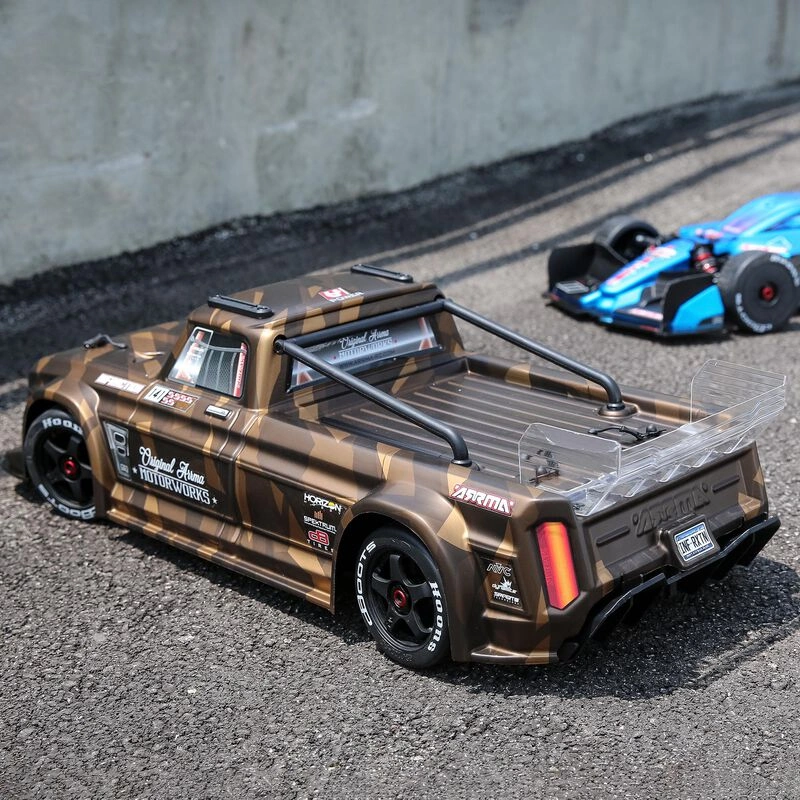

Take your truck bashing to the street with the ready-to-run ARRMA® INFRACTION™ 6S BLX 4WD. It's the first RC truck of its kind — DESIGNED FAST and DESIGNED TOUGH for hard-hitting action at speeds of 80+ mph with 6S power!
Features
- The first resto-mod street basher truck with the versatility to run on- and off-road.
- Capable of 80+ MPH (129+ km/h) speeds with 6S power and the included speed pinion.
- 4X4 traction — can be run on asphalt, gravel, smooth dirt, or short grass.
- DESIGNED FAST and DESIGNED TOUGH.
- Classic truck body comes screen-printed, trimmed and decaled
- Customizable wing allows you to tune downforce just how you want it
- Full-width front splitter balances front vs. rear distribution of downforce
- Rear diffuser helps generate downforce
- 3mm plate, 6061-T6 anodized aluminum chassis
- Center chassis brace for maximum durability
- Adjustable front and rear body mounts
- Easy-access sliding motor mount for quick motor removal
- Dual XL battery trays
- Waterproof receiver box
- Heavy-duty servo saver
- Heavy-duty 4X4 drivetrain
- Durable steel drive shafts
- Center diff for improved handling on loose or slippery surfaces
- All-metal diff outdrives and gearbox internals
- Easy-access diff module with 5-bolt center diff removal
- Independent suspension
- Big bore aluminum oil-filled adjustable shocks
- Black-anodized aluminum front and rear shock towers
- 5-Spoke wheels and all-road dBoots® Hoons tires
- Super-durable wheel hubs for strength
- Hub nut O-rings
- Spektrum™ DX2E Active™ radio
- Spektrum DSMR™ SRS6000 receiver with AVC® Active Vehicle Control™
- ADS-15M waterproof* metal-geared servo
- BLX4074 2050Kv brushless motor
- BLX185 waterproof* ESC
- 2-year limited warranty (see product manual for details)
- Two 2-3 Cell Hardcase LiPo batteries with IC5/EC5 connectors
- LiPo balancing charger
- (1) INFRACTION™ 1/7 BLX Street Bash 4WD Resto-Mod RTR Truck
- (1) Product Manual
Overview
With its 4X4 traction, you can run the INFRACTION 6S BLX on all roads, in all conditions — over loose gravel, asphalt, smooth dirt, and short grass, in the sun, rain, and ice.
The INFRACTION 6S BLX offers classic truck looks for street bashing. The body comes factory-finished with a matte bronze camouflage trim and decals. Its included, tunable wing lets you customize the downforce the way you want it. To further enhance the aerodynamics, the chassis includes a full-width front splitter that balances downforce distribution. A rear diffuser increases downforce and grip, enabling you to corner faster and with confidence.
DESIGNED FAST, DESIGNED TOUGH — underneath the truck body is a 3mm anodized aluminum chassis with a center brace to maximize strength. The heavy-duty 4X4 drivetrain features durable steel drive shafts plus all-metal diff outdrives and gearbox internals. The center diff module can be removed by taking out just five bolts, making maintenance as fast as the INFRACTION 6S BLX truck itself. A sliding mount allows quick, easy motor access, and dual XL battery trays are included.
Big bore, oil-filled shocks on black-anodized front and rear shock towers keep the dBoots® Hoons all-road tires firmly planted for maximum traction. The tires are mounted on 5-spoke wheels with extra-durable hubs.
For ready-to-run completeness, ARRMA has equipped the INFRACTION 6S BLX with a 2050Kv brushless motor, waterproof ESC and metal-geared servo. Its Spektrum™ DX2E Active™ radio system features AVC® Active Vehicle Control™ for dialing in the stability you need to carve corners or nail jumps without backing off the throttle. The only additional items required are two 2S or 3S LiPo batteries with IC5™ or EC5™ connectors, a LiPo-compatible charger, charging bag, and 4 'AA' batteries for the transmitter.
Video Overview
BRACE AS ONE
Center brace for maximum durability
AERODYNAMIC DUO
Aerodynamic nose-cone and front wing with a splitter to increase downforce and provide maximum control
BIG BORE SHOCKS
For when all-road means all-roads
LARGER THAN LIFE
Two large battery trays with hook and loop straps accomodate a wide range of battery sizes
SCALE & POLISH
Premium matte body finish with intricate decals and details
ALL-ROAD AGGRESSION
dBoots® HOONS tires designed for extreme all-road action and 5-spoke wheels
ROLL PROTECTION
Roll-bars and roof rails - ARRMA TOUGH, for any upside down action
FULLY INTEGRATED AERODYNAMICS
Integrated black anodized chassis and diffuser for slick underside airflow
BLX185 6S Brushless ESC
- Waterproof and dustproof design
- 150A, 6S LiPo ready (3S, 4S and 6S LiPo compatible)
- Fitted with reliable IC5™ connectors (EC5™ compatible)
- Integrated fan for reduced heat during extreme running
- High quality 10awg wires
- Low voltage cut off and thermal overload protection
- User programmable punch and brake settings
BLX4074 2050Kv Brushless Motor
- Beautifully etched aluminum can
- 4-pole construction for smooth and consistent power
- Gold bullet connectors for reliable and efficient connection
- Finned motor can for increased heat dissipation
- Super strong 5mm shaft
SPEKTRUM DX2E ACTIVE RADIO & SRS6000 RECEIVER
- Ergonomic steering wheel, for precise control in all conditions
- On-the fly adjustable AVC® gain for personalized handling setup
- Lightweight and ergonomic design for long bashing sessions
- Fully waterproof and dustproof ARRMA radio box
- Built-in 3-position throttle limiter
- Steering, throttle rate & trim adjustments with throttle and steering reversing
ADS-15M Servo
- Strong, metal gears used throughout
- Waterproof and dustproof case
- 25 tooth output spline
- Torque: 14kg-cm @6V
- Speed: 0.16sec/60degree @6V
- Dimensions: 40x38x20mm (Industry standard size)
AVC® INCLUDED
Spektrum Active Vehicle Control™ system for some help when things get loose
OPTIONAL SPEED PINION INCLUDED
Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance
MAKE THE MARKS, CREATE THE SPARKS
See the sparks fly by using optional titanium screws* in the underside of the rear diffuser
*Sold separately
EASY DOES IT
Sliding motor mount for smooth meshing and removal with easy-access center spool
EASY-ACCESS DIFFERENTIALS
Front and rear diffs are quickly and easily accessed for rapid tuning and maintenance
HEAVY-DUTY
Tough A-arms and drivetrain components keep you bashing for longer
Product Specifications
| Gear Pitch | 1.0 Module |
| Servos | High torque metal gear steering servo |
| Power Type | Electric |
| Battery Tray Dimensions | 7.09 x 2.17 x 2.76' (180 x 55 x 70mm) |
| Front Track | 12.13' (308mm) |
| Outer Diameter | 3.94 in (100mm) |
| Product Width | 12.20' (310mm) |
| Radio | Included |
| Front Shock Spring Rate | 4.7N/m |
| Product Height | 7.87' (200mm) |
| Tire Compound | White |
| Wheel Width | 1.69' (43mm) |
| Product Length | 27.36' (695mm) |
| Spur Gear | 46T |
| Suspension | Independent |
| Ball Bearings | Full set |
| Chassis | 6061-T6 aluminum 0.12' (3mm) thick |
| Completion Level | Ready-To-Run |
| Drivetrain | 4WD |
| Ground Clearance | 0.59' (15mm) |
| Internal Gear Ratio | 3.3:1 |
| Motor Size | 4074 2050Kv |
| Scale | 1/7 |
| Battery | Two 2S or 3S LiPo batteries w/ IC5 or EC5 connectors (sold separately) |
| Approximate Assembly Time | 1-3 Hours |
| Body | Screen printed, decaled and trimmed |
| Pinion | 18T |
| Charger | Sold Separately |
| Differential | Three oil-filled metal gear |
| Rear Shock Spring Rate | 6.6N/m |
| Receiver | Included |
| Shock Type | Big Bore aluminum body, oil-filled |
| Wheel Type | 5-spoke |
| Bushing Material | Metal |
| Product Weight | 10.56 lbs (4.8kg) |
| Tire Tread | Hoons |
| Water-Resistant | Yes |
| Final Drive Ratio | 8.46:1 |
| Rear Track | 12.01' (305mm) |
| Speed Control | Included |
| Wheelbase | 15.98' (406mm) |
