Outcast EXB Roller: Unleash the Beast! Extreme Bash Monster Truck Action Awaits!
Get ready to unleash your inner rebel with this one of a kind masterpiece. This ain't your grandma's product folks, it's a freakin' experience. Think of it as a passport to awesome, a ticket to the wild side. Built for those who dare to be different, this thing is gonna turn heads and start conversations. It's the perfect blend of grit and glory, a true testament to living life on your own terms. So ditch the ordinary and grab a slice of extraordinary. You won't regret it, promise. This is pure American swagger in a package. Buy it, live it, love it.

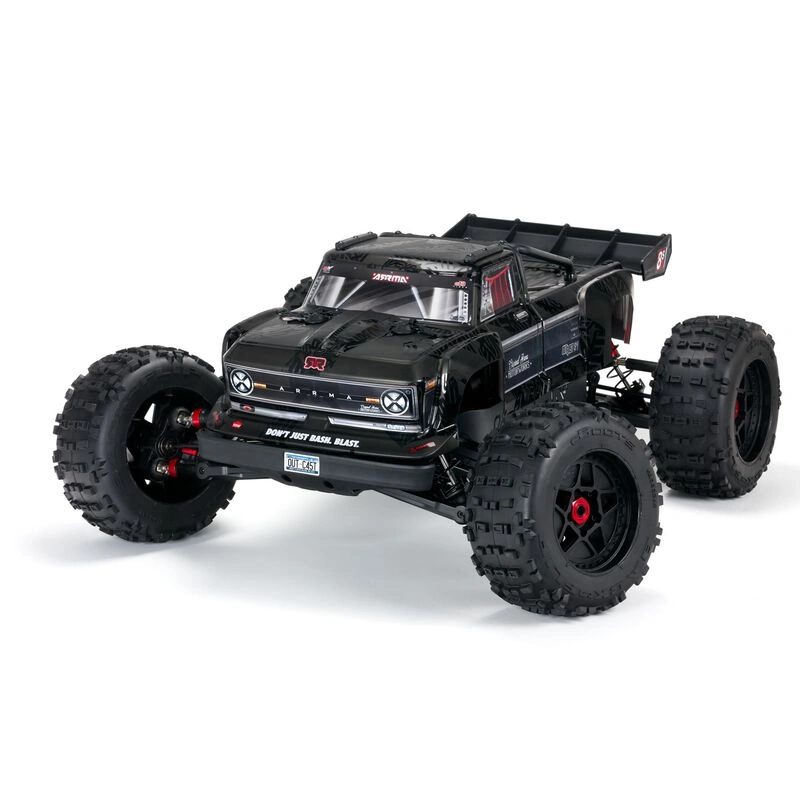

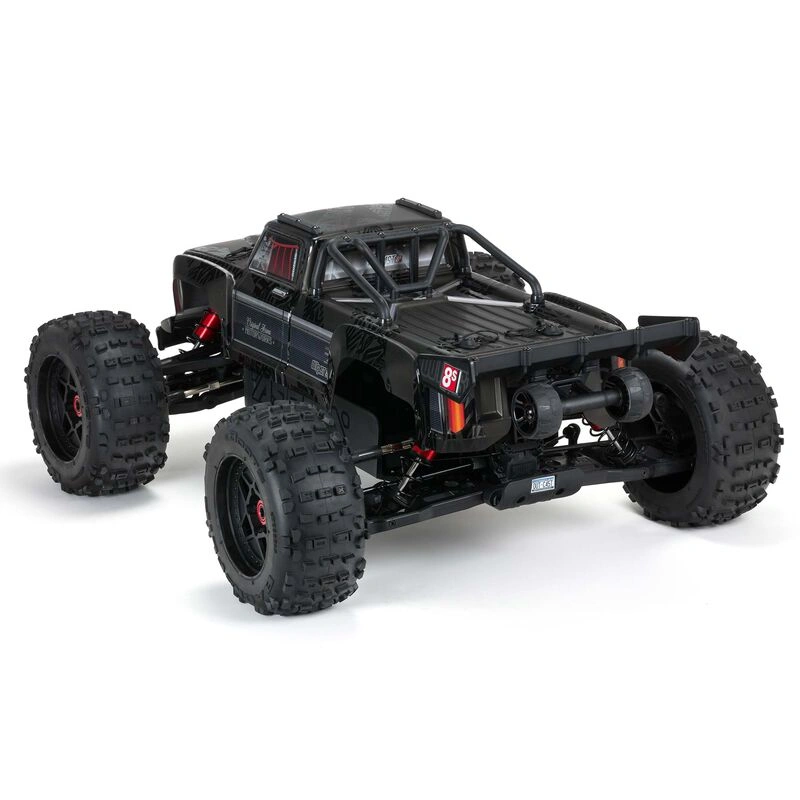

Fully assembled and ready for your choice of electronics, the ARRMA® OUTCAST™ 1/5 4WD Extreme Bash Stunt Truck Roller adds extra toughness everywhere it counts — making it the ultimate platform for performing stunts and bashing over brutal terrain.
- EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
- EXB Matte and gloss effect body
- Oil-filled adjustable 20mm bore shocks with 6mm thick shock shafts and new plush shock tuning
- dBoots® Back-Flip tires
- All-metal diff outdrives and gearbox internals
In The Box
- (1) ARRMA® OUTCAST™ 1/5 4WD Extreme Bash Stunt Truck Roller
- (1) Optional 39T Spur Gear
- (1) 49 Series Motor Plate
- (1) 56 Series Motor Plate
- (1) 1/5 Servo Mounts
- (1) 1/6 Servo Mounts
- (1) 1/5 OUTCAST 4WD EXtreme Bash Roller Manual
Needed to Complete
- (1) 2+ Channel Transmitter and Receiver
- (1) Metal Gear, Hi-Torque 1/5 Scale Steering Servo
- (1) Electronic Speed Control
- (1) Motor
- (2) 3S or 4S LiPo Battery
- (1) Compatible LiPo Battery Charger
- (1) Pinion Gear
Introduction
This is ARRMA® bashing performance at its biggest and best! Fully assembled and ready to complete with your choice of radio and 8S brushless power system, the 1/5 OUTCAST™ 4WD EXtreme Bash Stunt Truck Roller is the perfect platform for blasting over rough terrain and performing flips and tricks with ease.
Features
- EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
- EXB Red-anodized CNC aluminum front brace mount

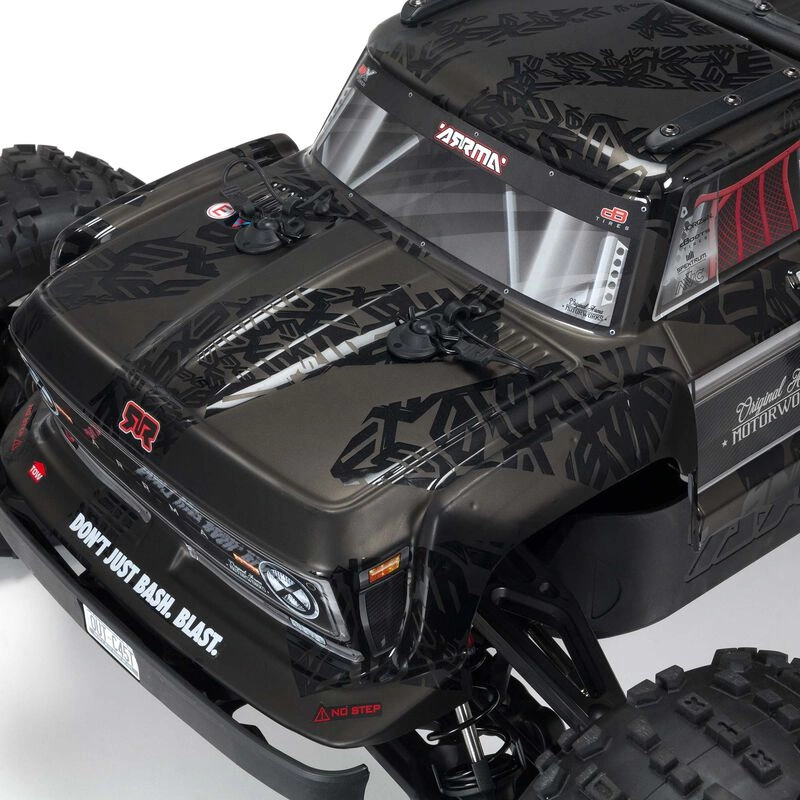

- EXB Matte and gloss effect body
- Heavy-duty 8mm thick steel rear turnbuckles
- Heavy-duty 7mm thick steel steering turnbuckles
- Oil-filled adjustable 20mm bore shocks with 6mm thick shock shafts and new plush shock tuning
- Heavy-duty servo saver springs
- Front and rear sway bars
- Red-anodized aluminum 49 and 56 series motor plates
- dBoots® Back-Flip tires
- 47T and optional 39T Spur Gear
- Servo mounts for 1/5 and 1/6 servos

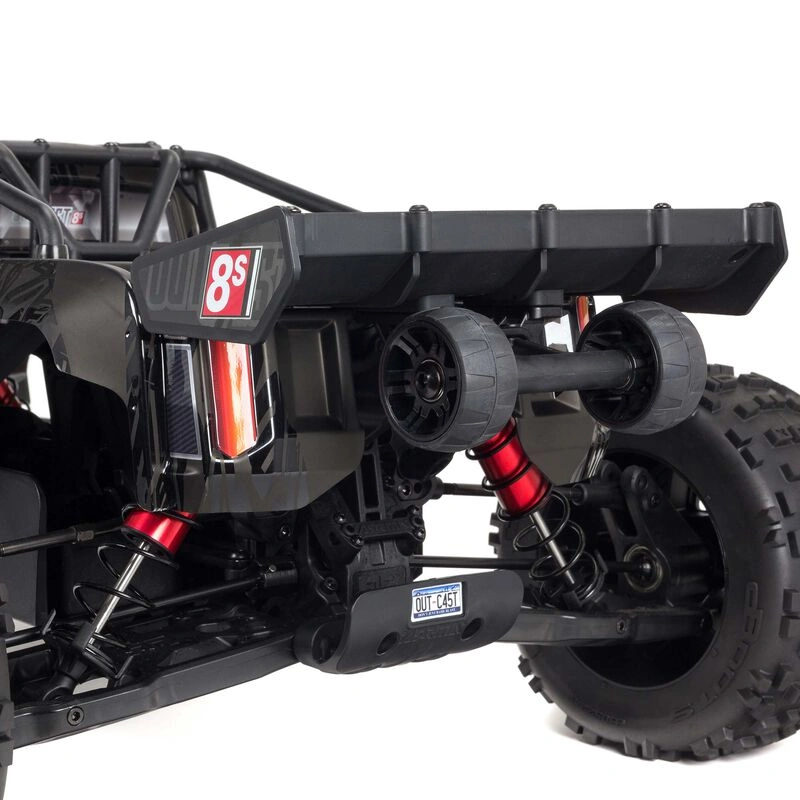

- Wheelie bar

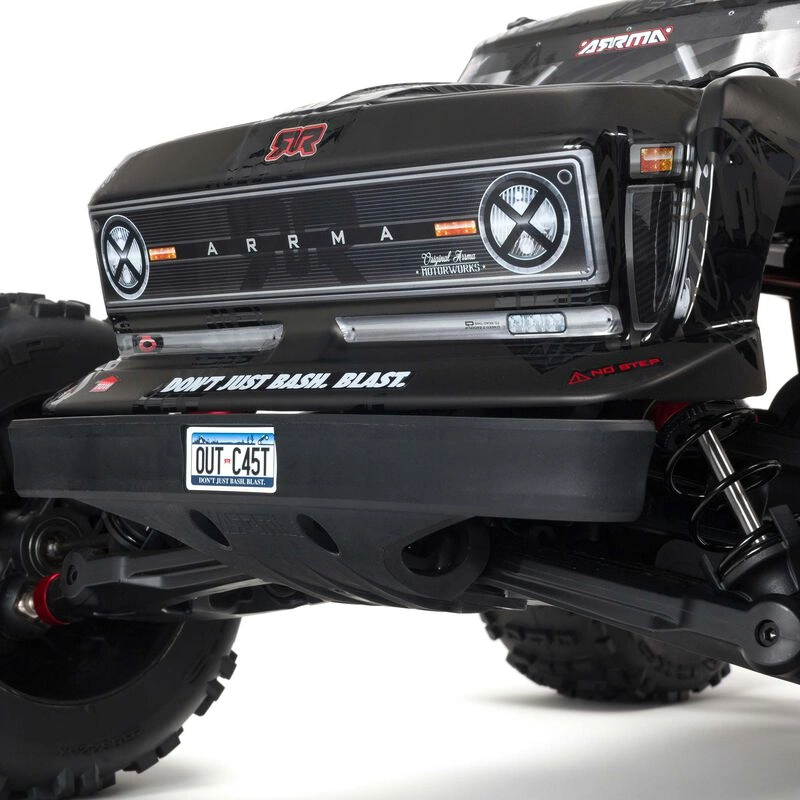

- Front bumper with impact-absorbing design
- Easy-access 3-bolt sliding motor mount for quick motor removal
- Ultra-thick composite front and rear shock towers
- Black anodized aluminum rear lower chassis brace
- Multi-structured center brace system for maximum durability
- Heavy-duty drivetrain
- Easy-access front and rear diff module design
- All-metal diff outdrives and gearbox internals
- Durable steel driveshafts
- Durable wheel hubs for increased strength
- Easy-access waterproof electronics module

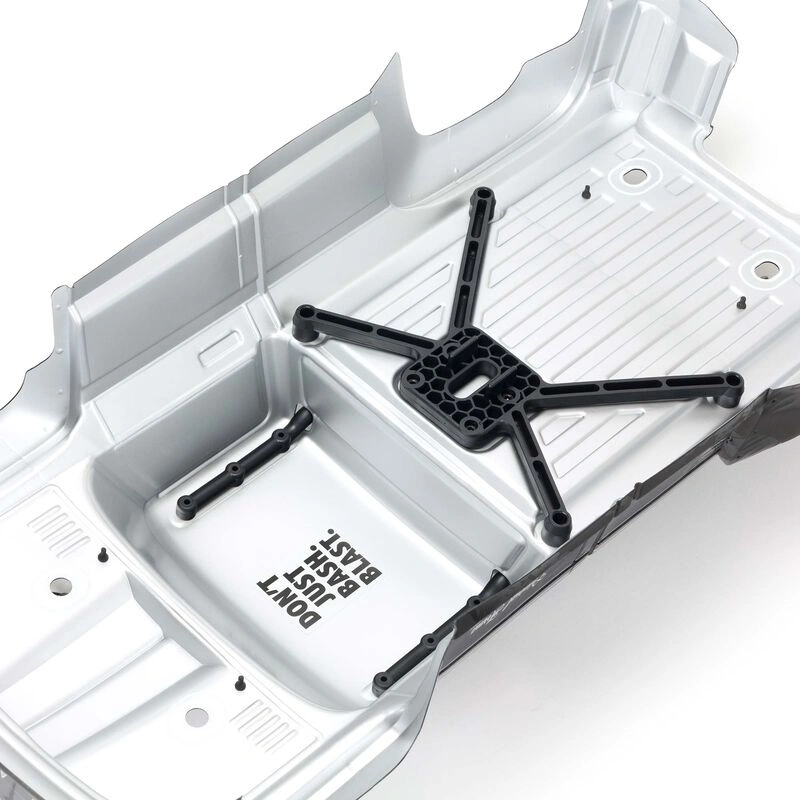

- Center body support and brace for maximum durability
- Strong composite chassis side pods
- 2-year warranty (see website support for details)
Overview
Equipped right out of the box with a premium package of EXtreme Bash (EXB) parts and options, the 1/5 OUTCAST™ 4WD EXB Stunt Truck Roller is the top-of-the-line ARRMA® large-scale stunt vehicle. It has extra toughness everywhere it counts. Components receiving the EXB treatment include the 5mm thick EXB 7075 T6 CNC aluminum laser-etched chassis plate; EXB red-anodized CNC aluminum front brace mount; and exclusive EXB matte and gloss effect finished body for a look unlike any other vehicle.
With adjustable, oil-filled, 20mm bore shocks on ultra-thick composite towers soaking up the bumps, the 1/5 OUTCAST™ 4WD EXB Stunt Truck Roller blasts over dirt, asphalt, and grass — all terrain and all conditions. Long-lasting dBoots® Back-Flip tires on multi-spoke wheels with durable hubs add all-terrain traction. Everything in the durable design contributes to confident control and responsive handling.
A center body support, aluminum center braces and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to demanding stunts and brutal terrain.
ARRMA® engineering also cuts your maintenance time to the minimum. The 1/5 OUTCAST™ 4WD EXB Stunt Truck Roller has an efficient, driver-friendly design, with easy-access front and rear diff modules and a sliding mount for fast, hassle-free motor access. The easy-access, molded electronics module contains a waterproof receiver box, servo mount and ESC tray, and is ready to protect your choice of electronics from dirt and moisture.
It all adds up to make the 1/5 OUTCAST™ 4WD EXtreme Bash Stunt Truck Roller more than just massive and powerful. It's the ultimate ARRMA® stunt bash machine for the ultimate large-scale experience.
Video Overview
EXB (EXtreme Bash) Components
EXB-hardened components throughout its fully assembled chassis give the 1/5 scale ARRMA® OUTCAST™ EXtreme Bash Stunt Truck Roller virtually unstoppable strength.

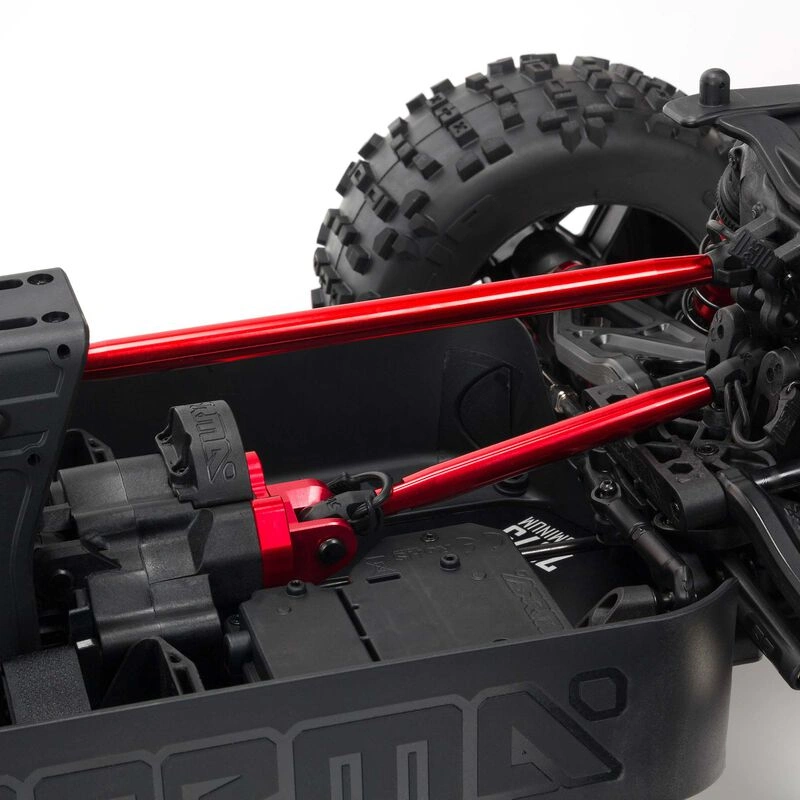

Steel Turnbuckles
Heavy-duty components including the 8mm thick steel rear turnbuckles and 7mm thick steel steering turnbuckles enable the 1/5 scale OUTCAST™ EXB to withstand extreme off-road bashing.

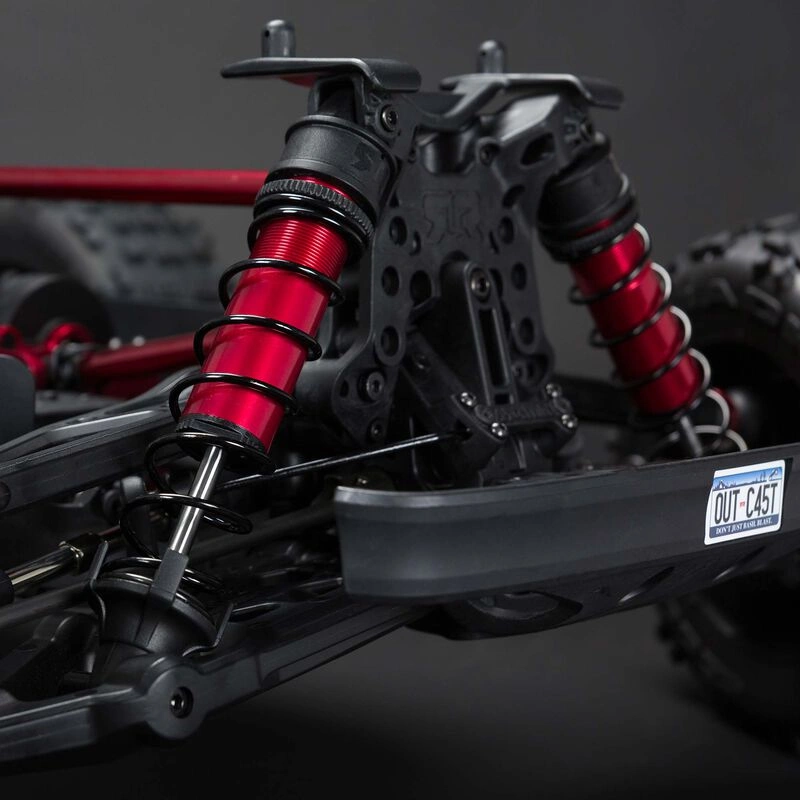

Oil-Filled Shocks
Mounted on ultra-thick composite front and rear towers and featuring new plush shock tuning, the adjustable, oil-filled, 20mm bore shocks with 6mm thick shock shafts easily soak up bumps.
High-Traction dBoots® Tires
Long-lasting dBoots® Back-Flip tires on multi-spoke wheels with durable hubs deliver all-terrain traction — and add an aggressive edge to the EXB matte and gloss effect finished truck body.

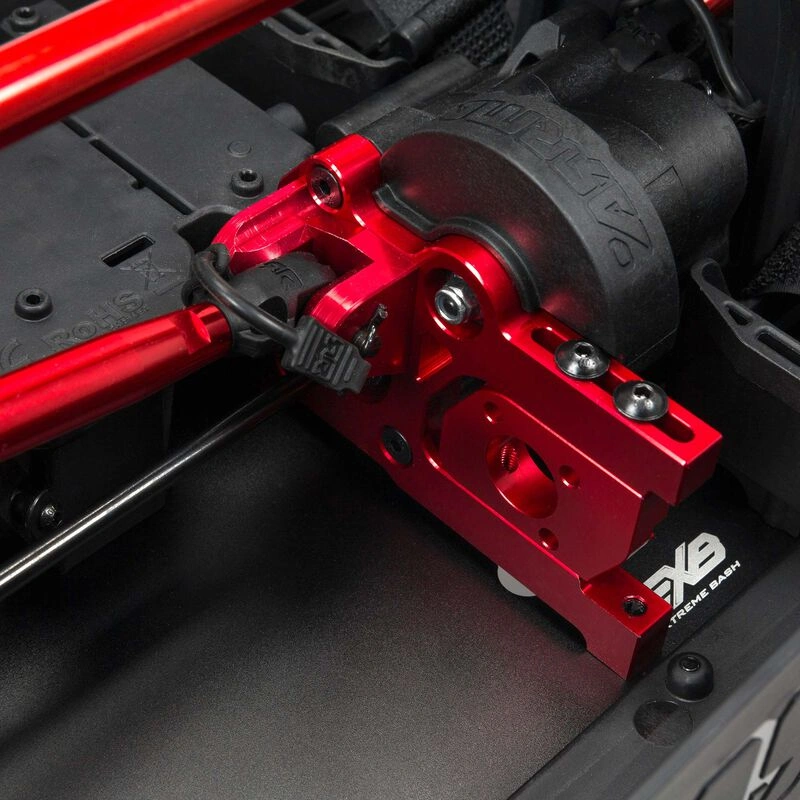

Quick Motor Access
ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. For example, the easy-access, 3-bolt sliding motor mount allows quick motor removal.
Electronics Module
The easy-access, molded electronics module screwed to the chassis contains a waterproof receiver box, servo mount and ESC tray — ready to protect your electronics from dirt and moisture.

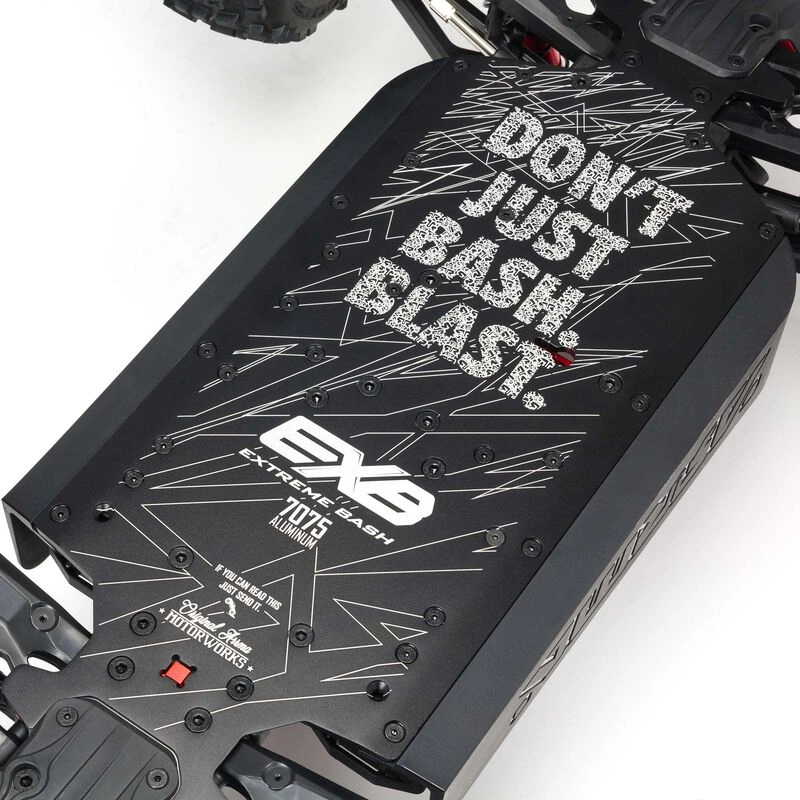

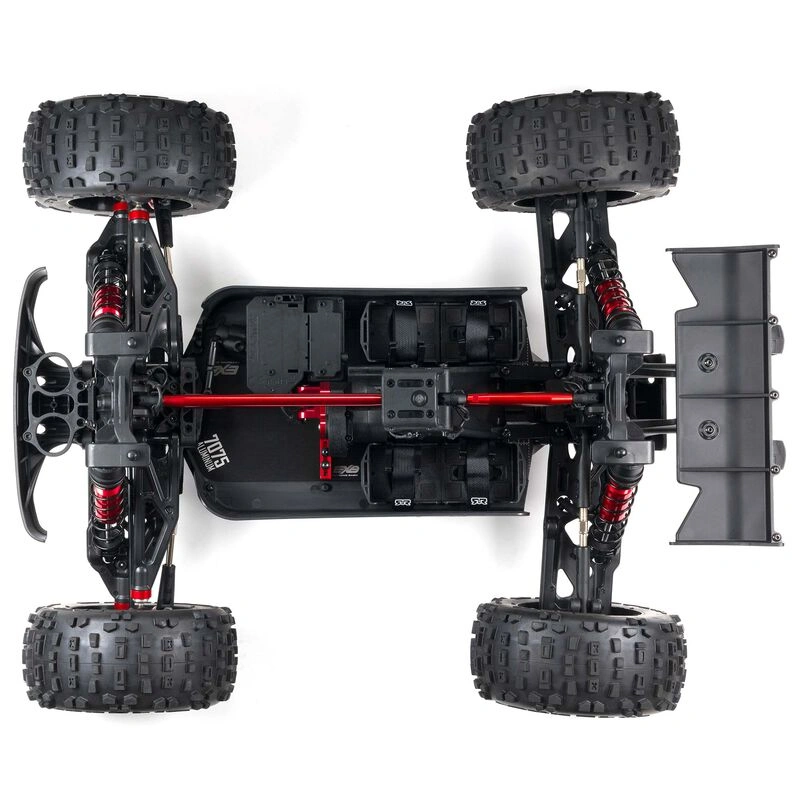

Multi-Structured Center Brace System
Made of rugged anodized 7075 T6 aluminum, the laser-etched 5mm chassis plate includes strong composite chassis side pods and a center body support and brace for maximum durability.
Durable Metal Construction
Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An EXB-toughened suspension system smooths the ride.
Product Specifications
| Power Type | Electric |
| Gear Pitch | 1.0 MOD |
| Servos | Sold Separately |
| Product Weight | 23.32lbs (10.6kg) |
| Vehicle Type | Stunt Truck |
| Water-Resistant | Yes |
| Final Drive Ratio | 9.1 - 28.4 |
| Rear Track | 23.46' (596mm) |
| Speed Control | Sold Separately |
| Wheelbase | 16.93' (430 mm) |
| Battery Tray Dimensions | 6.69 x 2.16 x 2.09 in (170 x 55 x 53mm) |
| Front Track | 23.46' (596mm) |
| Power System | Roller |
| Product Width | 23.46' (596 mm) |
| Radio | Sold Separately |
| Charger | Sold Separately |
| Differential | 3 Differentials, Gear Type Design |
| Receiver | Sold Separately |
| Shock Type | Aluminum Body Oil-Filled Coil-Over Springs |
| Approximate Assembly Time | 1 - 3 Hours |
| Body | Painted, decalled and trimmed |
| Brakes | Integral with ESC (ESC not included) |
| Scale | 1/5 |
| Battery | Sold Separately |
| Internal Gear Ratio | 9.06 |
| Product Length | 28.11' (714 mm) |
| Spur Gear | 47T and 39T included |
| Suspension | Independent |
| Drivetrain | 4WD |
| Drive Type | Forward/Brake/Reverse |
| Product Height | 12.01' (305 mm) |
| Top Speed | 55+ |
| Wheel Hex Size | 24mm |
| Ball Bearings | Full Set, Rubber Shielded |
| Chassis | 5mm plate, 7075-T6 aluminum |
| Completion Level | Roller |
