Product Detail

Features:

• High Current: 160A Cont. Output
• BEC Output: 5V-7.4V
• 13AWG Wire
• LCD Progam Box or WiFi Express Module Compatible
• Motor Limit: 1/10th Touring Car = 4.5T / 1/10th Buggy = 5.5T 3650 Motor
• Upgraded 32-bit M4 microprocessor with more powerful processing capability guarantees stable control and rapid response. (Industry's highest 32-bit microprocessor, increased processing speed by X4)
• Peak current up to 1200A. (this is not a typo)
• Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.
• Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving; braking forces (of the motors).
• Expanded range of the max. brake force brings in the active brake ranges from 101% to 150%.
• Softening function (HOBBYWING-initiated) for milder or wilder driving control and better driving efficiency.
• 10 select-to-use profiles applicable to all 1/10th RC car racing.
• Internal electronic key switch for long service life, high reliability; and the external switch port for connecting an external switch (included in the product box) is applicable to different situations.
• Separate PRG/FAN port is able to power an external fan for maximize cooling performance or connect a LCD program box or WiFi module to the ESC.
• With the New WIFI express module (purchase separately), users are able to program parameters, upgrade firmware and check relevant data during the event using either the iPhone or Android devices.
• Switchable motor direction (CCW/CW) for various chassis.
• Multiple protections comes in standard
• low-voltage cutoff protection
• ESC and motor thermal protection
• Fail safe (throttle signal loss protection)
• Reverse polarity protection*
• Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real time.
• Firmware upgrade via Hobbywing multi-function LCD program box or WiFi Express (item sold separately).

Specifications:
Current: Continuous: 160A / Burst: 1200A
Battery: 5-6 cells NiMH/NiCd / 2S LiPo
Built-in BEC: 5V-7.4V
Motor Supported: Sensored and sensorless brushless motors
Suitable Motor: 3650 Motors,1/10 Touring Cars ≥10.5T, 1/10 Buggy≥5.5T
Application: STOCK class of 1/10th Touring Car & Buggy Racing
Size: 37.5X30.9X32.5mm
Weight: 95g

Includes:

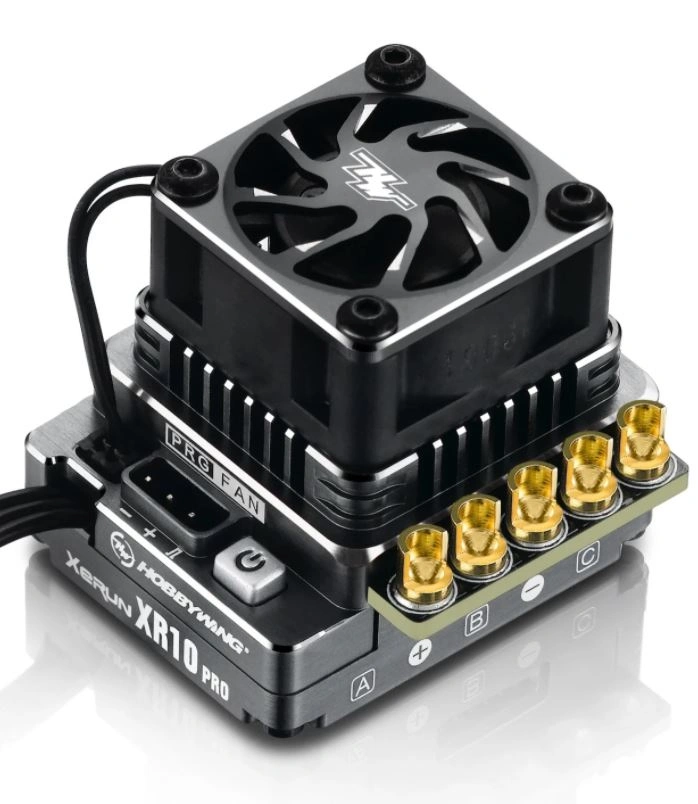

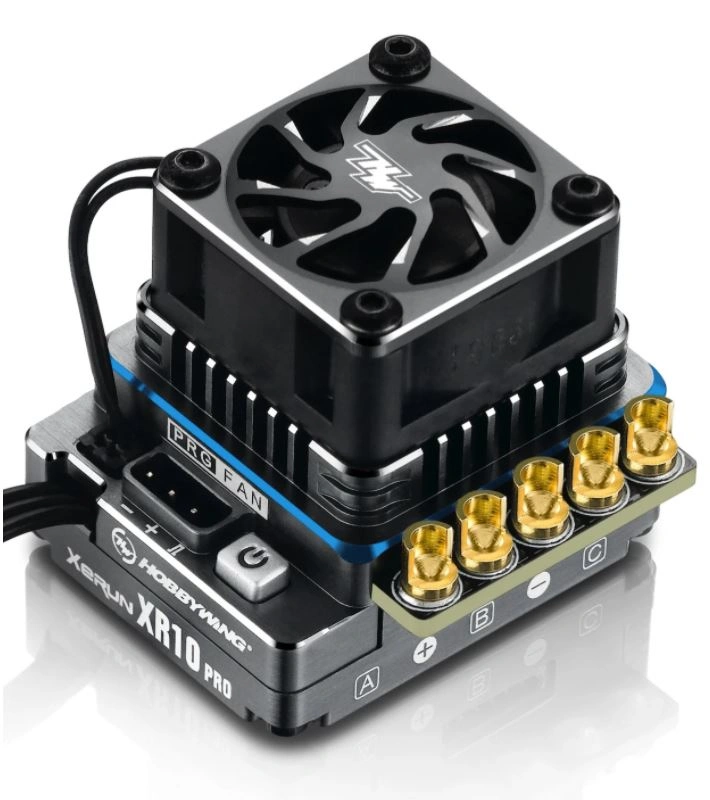

• (1)XR10 PRO ESC w/ a cooling fan
• (2) Input wires & (3) Output wires
• (2) Cooling fan (comes with one back-up fan)
• Dual capacitors
• Decals
• Bonus parts: heat tubes, double tape, nylon cable zap traps
