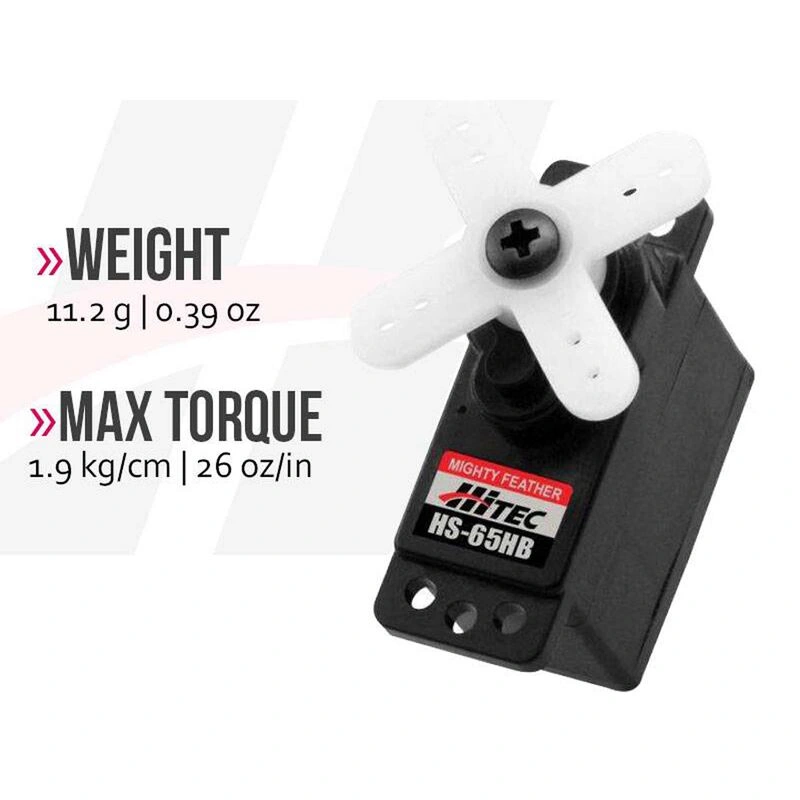

Hitec HS-65HB Sub-Micro Analog Karbonite Gear Servo

$13.00 $25.99

num:

Considered one of the most powerful servos in the micro class, the HS-65 is offered with a choice of “shock resistant” Metal or “zero wear” Karbonite gears. The 65 series features a top-ball bearing for long life and positive centering, 31 ounces/inches of power at 6 volts and is an excellent choice for higher performance micro helicopters, electric park flyers, and 1/18 scale cars.

Speed: @4.8V .16sec/60' / @6.0V .13sec/60'
Torque: @4.8V 22oz/in / @6.0V 26oz/in
Premium Feather Servo
Strong Karbonite Gears
Ball Bearing-Supported Output Shaft
High Torque and High Speed

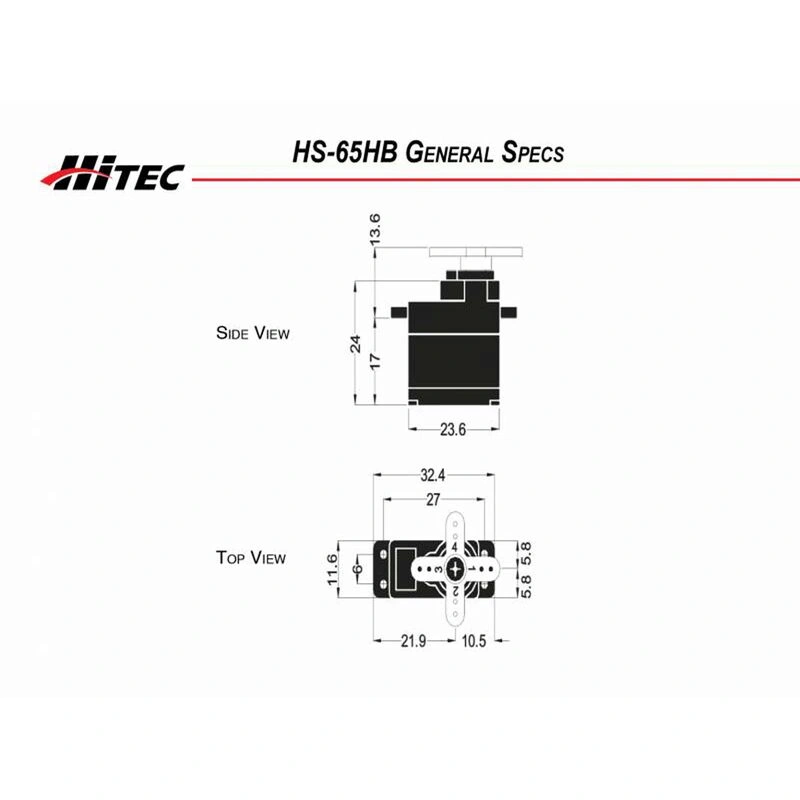

Product Specifications

Current Draw Idle	7.7 mA
Product Width	0.45' (11 mm)
Application	Small Slectric Aircraft, Cars
Product Weight	0.39oz (11.2g)
Water-Resistant	No
Maximum Servo Torque	22oz/in @ 4.8V, 26oz/in @ 6.0V
Programmable	No
Servo Size Category	Sub-Micro
Connector Type	Universal
Maximum Servo Speed	0.16 sec/60 deg @ 4.8V, 0.13 sec/60 deg @ 6.0V
Product Length	0.92' (23 mm)
Current Draw Stall	1,200 mA
Motor Type	Brushed
Servo Operating Voltage	4.8 - 6.0V
Input Voltage	4.8V ~ 6.0V
Product Height	0.94' (24 mm)
Servo Type	Analog
Deadband	5µs
Bearing	Top Ball Bearing
Bushing Or Bearing	Bearing
Gear Type	Karbonite
Wire Gauge	28 AWG
